Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator

Name: Steel Head NTC Thermistor Temperature Sensor with B2585 2 Wire and 3 Wire Options for Car Refrigerator
Brand: HENGHAO
Price: 0.50 USD

Buy cheap Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator product

Model Number : 3950

Place of Origin : Guangdong, China

Brand Name : HENGHAO

MOQ : 1000

Price : $0.50-3

Mounting Type : holder

Shell Material : steal head

B Value : B25/85

Temperature Range : -40-120

Accuracy : 1%~5%

Probe Material : epoxy, plastic tube, metal

Resistance : 1~100k Ohms

Wire Material : 2 Wire 3 Wire

Nominal Resistance : 5K,8K,10K,15K to 100K

R25 Permissible Variance : ±1,±2, ±3, ±5, ±10

Material Coefficient : 2500~5000K

B25/50 Variance : ±1,±2

Dissipation Coefficient : ≥0.8mw/℃

Thermal Time Constant : ≤25S

Rated Power : 50mw

Contact Now

NTC TEMPERATURE SENSOR

Specification Name	Scope	Detection Condition
R25(nominal resistance value)	5K,8K,10K,15K to 100K	Constant temperature 25℃±0.05℃
R25 Permissible variance(%)	±1,±2, ±3, ±5, ±10	Constant temperature 25℃±0.05℃
B25/50 or B25/85(material coefficient)(thermal-sensitivity index)	2500~5000K	Constant temperature 25℃±0.05℃ Constant temperature 85℃±0.05℃
B25/50 Value permissible variance(%)	±1,±2	Constant temperature 25℃±0.05℃ Constant temperature 50℃±0.05℃
∫(dissipation coefficient)	≥0.8mw/℃	Static in the air
T(thermal time constant)	≤25S	Static in the air
Ta(Working temperature)	-30℃~+120℃
Pn (rated power)	50mw	within working temperature

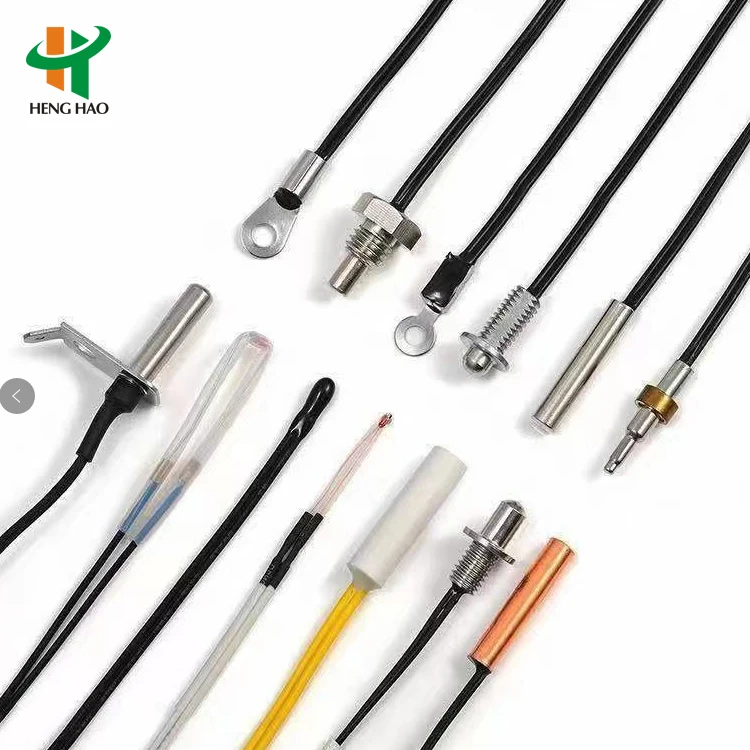

Case and head		Fork head, O ring head,drops of water head, Metal case, Thread copper case, injection head, or according to client’s drawing
Lead wire		#24 30# 2651, UL4411 28#, double wired conductor and so on, or according to client’s request.
Terminal		Can be riveted according to the requirements of various terminals

Product Tags:

B25/85 NTC Thermistor Temperature Sensor

2 Wire NTC Temperature Sensor

3 Wire Thermistor Temperature Sensor

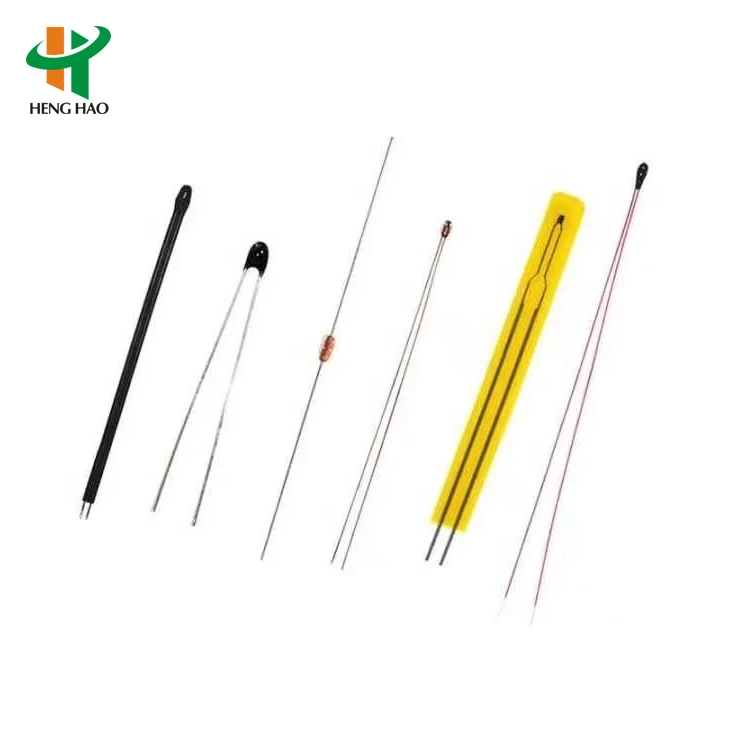

Steel Head NTC Thermistor Temperature Sensor with B25/85 2 Wire and 3 Wire Options for Car Refrigerator Images
